| Tank & Head Material | |
| Material | Q235B Steel |
| Tank Wall Thickness | 4 mm |
| Head Thickness | 5 mm |
| Transverse Baffle Thickness / Qty | 3 mm / 2 pieces |
| Manhole Cover | Material: Q235B
Quantity: 2 pcs Diameter: 500 mm |
| Water Pump | Capable of suction and discharge via PTO from transmission;
Pumping Capacity: 60 m³/h |
| Spraying System | 1. Front wash (cone or duckbill nozzle), rear spray; includes high-pressure water gun and misting device
2. Suction hoses: 2 pcs (length matched to tank size) |

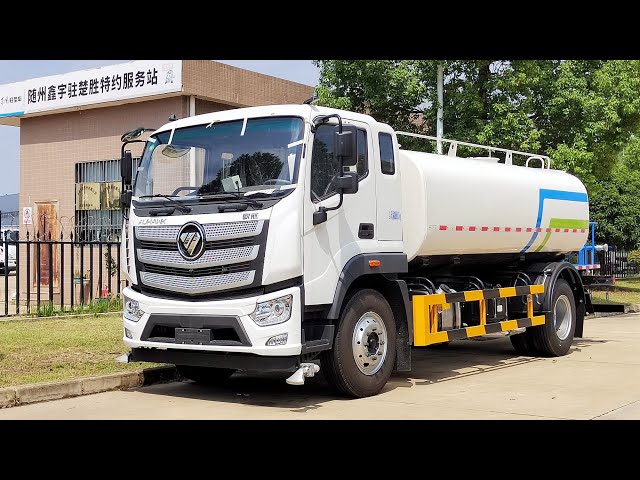

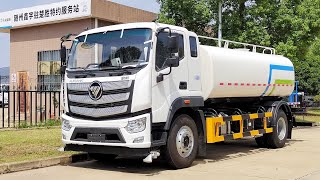

Meet the ultimate solution for large-scale municipal cleaning, construction dust control, and roadside greening: the 20m³ heavy-duty Watering tanker from Beijing Foton International Trade Co., Ltd. Engineered for resilience and efficiency, this robust workhorse combines the legendary Auman EST platform with premium components to deliver unmatched reliability in the toughest operating environments.
Engineered for Endurance and Versatility
At the heart lies the Cummins ISGe3-350 turbocharged diesel engine—delivering 350 HP (257 kW) and a massive 1800 N·m of torque—paired with a Sinotruk HW19712 heavy-duty manual gearbox and a 5.26 final drive ratio, optimized for low-speed traction and high-load hauling. With a 6×4 drive configuration, 25-tonne GVW, and rugged leaf-spring suspension (9/12 leaves), this Sprinkling cart thrives on rough terrain and uneven roads where lighter units falter.
Smart, Spacious, and Driver-Centric Cab
The flat-roof, right-hand-drive cab—2,490 mm wide—offers exceptional visibility and comfort: electric windows, central locking, a unified 5-lock security system, an air-sprung driver’s seat, and manual heated rearview mirrors ensure operator well-being on long shifts. Standard electric air conditioning and an MP3/radio/USB entertainment system (radar not included) enhance daily usability—because productivity starts with the person behind the wheel.
Premium Water Management System
The 20m³ tank is fabricated from high-strength Q235B carbon steel: 4 mm walls, 5 mm dished heads, and two 3 mm transverse baffles for structural integrity and fluid stability. Two 500 mm manholes allow easy access and maintenance. The high-capacity water pump—PTO-driven directly from the transmission—delivers an impressive 60 m³/h flow rate, supporting both suction and discharge operations.
Its advanced spraying system includes front rinsing nozzles (cone or duckbill), rear misting sprays, a high-pressure water gun, and fine-spray fogging—ideal for dust suppression, road cleaning, and urban greening. Two suction hoses (length matched to tank size) ensure rapid refill from ponds, reservoirs, or standpipes.
Built to Global Standards
Compliant with Euro III emissions and equipped with ABS-controlled air drum brakes (front & rear), 12.00R20 radial tires (20-ply rated), and a 350L aluminum alloy fuel tank, this Watering wagon is ready for international deployment. Whether you’re managing city infrastructure, mining sites, or large construction zones, it delivers consistent, high-volume performance with minimal downtime.
Don’t settle for makeshift conversions—choose a purpose-built, factory-certified Sprinkler lorry. With its proven chassis (announcement model: BJ3259DLPKE-RA), integrated design, and full-vehicle status, this Watering tanker guarantees compliance, safety, and serviceability.
And when versatility meets durability, you get more than a vehicle—you get a mobile water command center: a true Sprinkling cart for modern cities, and a professional-grade Watering wagon trusted by fleets worldwide.
