Category |
Item |
Details |
| Basic Form Info |
Version Number |
A |
| Form Number |
FTBG.10017.06.B |
| Effective Date |
2015-1-15 |
| Retention Period |
3 Years |
| Confidentiality Level |
Confidential (□General ■Confidential □Secret □Top Secret) |
| Project Number |
A5N0P |
| Product Letter Number |
/ |
| Product Basic Info |

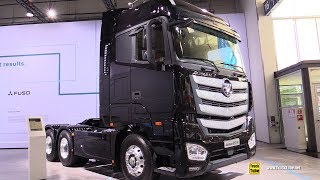

Product Model |
BJ4269SNFKB-RB |
| Vehicle Name |
Semi-Trailer Tractor |
| Other Announcements Corresponding to This Vehicle |
/ |
| Vehicle Serial Number |
4269SNFKB-RBZA05; Optional Installation Number: 4269SNFKB-RBZA05-X |
| Sales Region |
Other Overseas Countries |
| Product Line |
Series 6 |
| Function |
Tractor |
| Business Unit |
BU010A11B11C11D11 |
| Drive Type |
6×4 |
| Grade |
EST-A |
| Product Platform |
ST |
| Project Source |
"Overseas A5T 6x4-56T X13-560 Euro III - AMT Right-Hand Drive Double-Trailer Tractor Product Development Proposal" Foton Overseas Heavy Commercial Business Report [2023] No. 558 |
| Project Name |
Overseas South Africa A5T 6x4-56T X13-560 Euro III - AMT Right-Hand Drive Double-Trailer Tractor |
| Product Basic Info |
Project Level |
B2 |
| Business Line |
Heavy-Duty Truck |
| Basic Vehicle Model and Changes |
Based on 4269SNFKB-RBZA02, with LHH body, engine X13E3-560, vehicle three-stage filter, metal oil pan; gearbox ZF-12TX2621TD with retarder, no power take-off; cyclone tube high-position air intake; 13T single-reduction drive axle / 469 drum type (Fangsheng); EBS + ESC (WABCO); with AEBS (Zhibo) + LDWS + TPMS + FCW, with cruise control, with reverse image, no ETC, no adaptive cruise (ACC); no refrigerator, no reverse radar; reserved TBOX interface; 2018 model right-hand drive interior, SmartBCU electrical architecture. Automatic air conditioning, no parking air conditioning, no independent heat source; partial LED lamps, front and side windows are all anti-ultraviolet glass. |
| Vehicle Features and Overview |
Purpose |
Transportation of Daily Industrial Products; Note: 1. Medium and long-distance transportation, cross-border transportation; mainly for mineral products, daily consumer goods, glass, others (such as paper, plastic, steel, building materials, warehousing), etc.; suitable for standard transportation, maximum total mass of train in use: 56 tons for double trailers. 2. Service conditions of this vehicle: provincial highways, general roads, compacted roads, mainly highways; applicable temperature range: -25℃ - 40℃, dry, rainy, high temperature, areas below 3000 meters above sea level. |
| Total Vehicle and Cargo Weight |
56t |
| Upper Mounting Specification |
/ |
| Road Conditions |
Mainly highways, supplemented by national and provincial highways |
| Basic Configuration Technical Parameters and Type |
Cab Type |
High Roof |
| Body Status |
ESTA-2490 |
| Interior |
H5 Interior |
| Body Grade Code |
5 |
| Engine - Model |
X13E3-560 |
| Engine - Fuel Type |
Diesel |
| Engine - Rated Power [kw/ps (r/min)] |
413/553/1800 |
| Engine - Maximum Torque [N·m (r/min)] |
2500/1100 |
| Engine - Fuel Injection System |
High-Pressure Common Rail |
| Engine - Fan |
Silicone Oil |
| Engine - Displacement (ml) |
12900 |
| Engine - Emission Standard |
Euro III |
| Engine - Remarks |
/ |
| Clutch |
Φ430 Push Type |
| Clutch Operation Type |
Automatic Electronic Control |
| Suspension - Front Type |
Longitudinal Leaf Spring Assembly + Stabilizer Bar + Shock Absorber |
| Suspension - Rear Type |
Air Suspension (Without Lifting) |
| Leaf Spring Quantity |
3/-/- |
| Transmission |
12TX2621TD Aluminum (With Retarder) |
| Transmission Operation Type |
Automatic |
| Steering - Steering Gear Model |
AM90H-SR |
| Front Axle Rated Load |
7t |
| Basic Configuration Technical Parameters and Type |
Frame - Outer Width |
Front 900 / Rear 850 |
| Frame - Longitudinal Beam Section |
225/286×80×(8+L) |
| Rear Axle |
13t (469) Rear Axle, Imported Hub Unit, 3.364 Self-Adjusting Arm ABS |
| Rear Axle Housing Type |
Stretched Axle Housing |
| Brake - Service Brake |
Dual-Circuit Pneumatic Brake |
| Brake - Parking Brake |
Spring Energy Storage Air-Cutoff Brake |
| Brake - Auxiliary Brake |
Engine Brake + Hydraulic Retarder |
| Brake Type (Front/Rear) |
Disc Type / Drum Type |
| Other Basic Devices |
Driven Axle Rated Load/Model/Type |
/ |
| Tires |
315/80R22.5 20PR Steering/Driving |
| Cab Suspension Type |
Full-Floating Air Bag |
| Cab Lifting Type |
Electric |
| Body Combination (Seats, Doors and Windows, Rearview Mirrors) |
Electric Windows + Central Locking + Remote Lock + Unified Five Locks + Air Bag Seat Height + Electric Heated Rearview Mirrors |
| Entertainment System (Including Radar) |
MP5 + Radio + USB + No Radar |
| Battery |
180Ah Battery |
| AC Power Converter |
None |
| Wheel Guard |
Split Type |
| Other Basic Devices |
Side Skirt |
None |
| Working Platform |
Available |
| Fuel Tank |
760L + 300L Aluminum Alloy |
| Bumper |
Split Type Super Large FRP Bumper |
| Air Conditioning |
Automatic Air Conditioning |
| Air Filter Type |
Horizontal Type |
| Muffler Type |
Horizontal Square Type |
| Optional Devices |
Optional - Engine |
561 |
| Optional - Transmission |
459 |
| Optional - Fuel Tank |
L77 |
| Optional - Body Combination |
D61 |
| Optional - Middle and Rear Axles |
RP/RM/RR |
| Optional - Tires |
VB3/VGV |
| Optional - Entertainment System (Including Radar) |
NSW |
| Optional - Satellite Positioning Device |
0/J |
| Optional - Battery |
180 |
| Optional - Wheel Guard |
FTS |
| Optional - Bumper |
FCB |
| Optional - Air Filter Type |
WS |
| Optional Devices |
Optional - Upper Mounting |
000 |
| Optional - Additional Installation - Air Conditioning |
Q |
| Optional - Additional Installation - Fifth Wheel |
0/R |
| Optional - Additional Installation - Air Deflector |
0/D |
| Optional - Additional Installation - Independent Heat Source |
0 |
| Optional - Additional Installation - AC Power Converter |
0 |
| Vehicle Design Parameters |
Optional - Additional Installation - ETC |
0 |
| Optional - Additional Installation - Additional Equipment |
0 |
| Overall Vehicle Dimensions (Length × Width × Height) (mm) |
7115×2490×(3720) 3950 |
| Chassis Dimensions (Length × Width × Height) (mm) |
/ |
| Cargo Box Internal Dimensions (Length × Width × Height) (mm) |
/ |
| Wheelbase (mm) |
3300 + 1350 |
| Track (Front/Rear) (mm) |
2058/1829/1829 |
| Maximum Speed (km/h) |
105 (3.364), 96 (3.7), 115 (3.083) |
| Maximum Climbing Gradient (%) |
24 (Calculated by Adhesion) |
| Curb Weight of Vehicle (kg) |
9884 |
| Vehicle Design Parameters |
Curb Weight of Chassis (kg) |
/ |
| Designed (Fifth Wheel) Load Mass (kg) |
15986 |
| Maximum Design Total Mass (kg) |
56000 |
| Number of Carrying Persons (Persons) |
2 |
| Maximum Towing Mass of Trailer (kg) |
49986 |
| Remarks |
First Eight Digits of VIN Code for This Export Vehicle |
LVBS7PEB |
